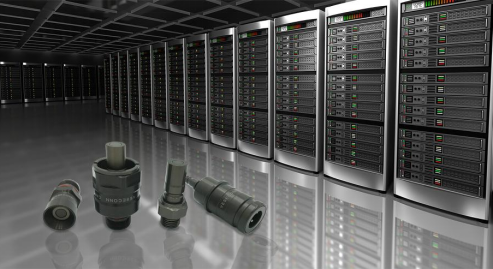

Liquid cooling connection solutions for data centers and energy storage industries

Solution for Liquid Cooling Quick Connection of Power Electronic Equipment

l Blind insertion connection between phased array radar and power amplifier

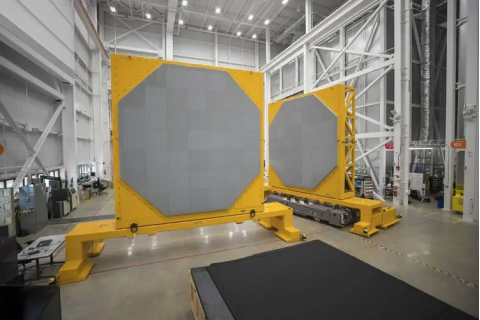

The phased array radar has a compact structure and narrow space, requiring high compactness and reliability of fluid connectors. Our blind connector has a compact structure and a floating structure, making the system safer to operate. We can also provide pressurized connections and self relieving structures. The CN series allows a maximum of ± 0.5mm misalignment connection, while the CNB series allows a maximum of ± 1mm misalignment connection. Our design team can also conduct embedded or other non-standard connection designs to make your system more compact and reasonable, while ensuring long-term reliability.

l Quick connection between military power supply and electronic chassis

For the cooling circuit of water-cooled plates, water separators, and liquid cooling sources, the CS buckle connector can perfectly achieve fast on-off without leakage. For different anti-corrosion requirements, we can provide stainless steel and surface treated stainless steel joints. The buckle connection method makes the CS series more suitable for use in vibration environments. For water cooled board connections that require frequent plugging and transportation, we recommend using sockets with self unloading pressure. The water cooled board pressure automatically unloads to prevent bulging and make transportation safer. For multiple power modules inside the chassis, blind plug connection has become the industry's preferred choice, and a specially designed floating structure makes your system safer and more reliable.

l Manual connection of wind power Solar inverter

Inverters are widely used in the wind power photovoltaic and rail transit industries, and with the continuous increase in power, liquid cooling has become a standard configuration. The CB series steel ball locking joint is particularly suitable for quick connection of the inverter cooling circuit. The structure is simple and reliable, and the materials can be aluminum alloy or stainless steel. Optional pressure connection and self unloading structure ensure uninterrupted operation of the system and long-term reliability. Thanks to the widespread use in the civilian industry, the CB series has better prices and cost-effectiveness, making it suitable for applications with relatively stable and controllable environments.

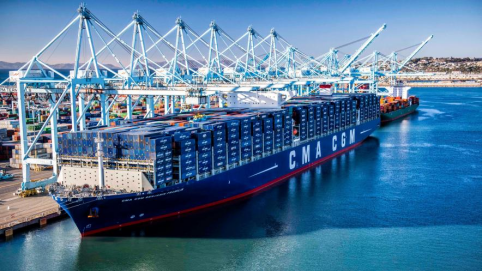

The shipbuilding and maritime industry has high requirements for corrosion protection, with diverse and uncontrollable cooling media. Wanshuo's flat head leak free quick connector can be made of stainless steel 304 or 316L, and the sealing ring is made of HNBR with stronger environmental adaptability. Our stainless steel 316L blind plug straight connector has been used on military ships for a long time without leakage, and even in shipboard environments using seawater as the cooling medium. In applications such as ship to ship electric energy storage equipment cooling, port heavy-duty AGV transfer vehicles, and electric drive tower cranes, Wanshuo's leak free quick connectors also perform excellently. We can provide a full range of stainless steel quick connectors and non-standard designs according to customer requirements.

Laser cooling fast connection solution

High power lasers require absolute sealing of quick connectors, with some lasers even directly immersed in coolant. The surface treated aluminum alloy leak free quick connector fully meets the cooling requirements of the laser, and after long-term use, it has no corrosion and does not affect the performance of the laser. Some ultra high power lasers adopt a gas-liquid two-phase cooling system, and specially designed snap joints and blind plug joints can fully adapt to gas-liquid two-phase environments. Wanshuo's leak free quick connector has performed excellently in the cooling of airborne lasers and has received an installation order.

Solution for liquid cooling quick connection of new energy vehicles and Charging station

l Blind plug connection between power battery and preheating module

The power batteries of new energy vehicles generally use liquid cooling, and the use of floating blind connectors makes rapid battery swapping possible. Blind plug connections have become standard in mainstream electric vehicles such as Tesla and NIO. Wanshuo's blind insertion series quick connectors allow for a maximum misalignment of ± 1mm, making power exchange more efficient and reliable. At the same time, we can also carry out non-standard design, allowing the cooling circuit and electrical circuit to be connected and disconnected simultaneously, and ensuring long-term reliability.

l Charging station cooling circuit manual connection

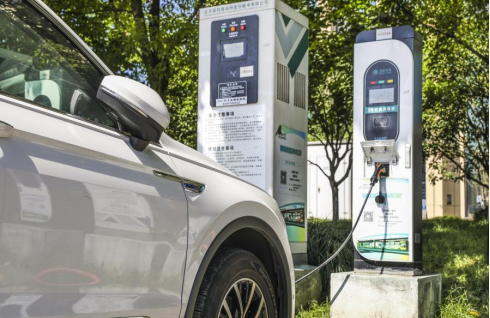

High current, high power, and fast charging inevitably result in power loss, which requires a powerful liquid cooling system to carry away the heat. The application of leak free quick connectors makes the installation and maintenance of liquid cooling modules simpler and more efficient. CB series aluminum alloy joints have compact structure, simple operation and good cost performance, especially suitable for batch use of Charging station.
